Introduction

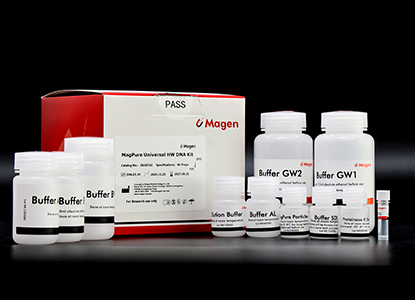

MagPure Universal HW DNA Kit is designed for the preparation of high molecular weight genomic DNA from a broad range of biological samples, including animal tissues, cultured cells, blood and microbial materials. The system combines protease-based lysis with controlled magnetic bead binding conditions, enabling efficient DNA recovery while minimizing mechanical fragmentation.

In routine laboratory workflows, sample characteristics can vary significantly, but a consistent purification strategy is often preferred. This kit provides a balanced solution where lysis efficiency and DNA integrity are maintained across different sample types without requiring extensive protocol adjustments. The magnetic bead workflow allows gentle handling during binding, washing and elution steps, supporting recovery of long DNA fragments suitable for integrity-sensitive downstream applications.

For workflows focused on specific sample challenges, more specialized systems may be considered. Tissue samples with higher levels of structural complexity can be processed using the MagPure Tissue HW DNA Kit (D6382), while bacterial samples requiring enzymatic cell wall disruption are better handled by MagPure Bacterial HW DNA Kit (D6383). For fungal and plant materials, which typically require mechanical disruption or inhibitor removal strategies, dedicated solutions such as MagPure Fungal HW DNA Kit (D6384) and MagPure Plant HW DNA Kit (D6385) provide more targeted workflows.

Details

Kit Contents

Contents	D638101	D638102	D638103
Purification Times	48	96	480
MagPure Particles	1.5 ml	3.0 ml	15 ml
Buffer ATL Minus	20 ml	40 ml	180 ml
Buffer SDS	1.8 ml	5 ml	20 ml
Buffer AL	15 ml	30 ml	150 ml
Buffer BD*	6 ml	12 ml	100 ml
RNase A	15 mg	30 mg	150 mg
Proteinase K	30 mg	60 mg	300 mg
Protease Dissolve Buffer	3 ml	5 ml	30 ml
Buffer GW1*	44 ml	88 ml	2 x 220 ml
Buffer GW2*	20 ml	50 ml	2 x 100 ml
Buffer GW3	50 ml	90 ml	450 ml
Elution Buffer	10 ml	20 ml	60 ml

Prefilled Kit Contents

Components		D6381-TL-06	D6381-S-48
RNase A		30 mg	15 mg
Proteinase K		60 mg	30 mg
Protease Dissolve Buffer		5 ml	3 ml
Buffer SDS		5 ml	1.8 ml
Buffer ATL Minus		40 ml	20 ml
Buffer AL		30 ml	15 ml
DA-Tip		12	24
V bottom plate/Reagent strip	Row 1/7：450μl Buffer BD	6 plates	48 strips
	Row 2/8：600μl Buffer GW1
	Row 3/9：600μl Buffer GW1
	Row 4/10：600μl Buffer GW2 25μl MagPure Particles
	Row 5/11：600μl Buffer GW3
	Row 6/12：120μl Elution Buffer

Storage and Stability

Proteinase K, RNase A and MagPure Particles should be stored at 2–8°C upon arrival. However, short-term storage (up to 24 weeks) at room temperature (15–25°C) does not affect their performance. The remaining kit components can be stored at room temperature (15–25°C) and are stable for at least 18 months under these conditions.

Purchase Guide

For guidance on selecting the most appropriate DNA extraction system based on sample type, input volume and workflow requirements:

👉 Magen Kits Selection Guide

Articles

Download

D6381 MagPure Universal HW DNA Kit 2025.pdf Preview Down

CAT NO	PRODUCT NAME	SIZE	PRICE
D638101	MagPure Universal HW DNA Kit	48 preps	$174.00
D638102	MagPure Universal HW DNA Kit	96 preps	$326.00
D638103	MagPure Universal HW DNA Kit	480 preps	$1,280.00
