Introduction

MagPure Gel Pure DNA Kit is designed for DNA purification from agarose gels, PCR products and enzymatic reaction systems using magnetic bead technology. The workflow enables recovery of DNA fragments larger than 100 bp without centrifugation or column filtration, making it suitable for both manual handling and automated processing.

Compared with fixed spin-column workflows, this system provides greater flexibility in clean-up format and is easier to integrate into high-throughput laboratory settings. It is commonly used in molecular cloning, PCR product cleanup and general DNA purification workflows where simplified handling and automation compatibility are important.

Details

Specifications

Features	Specifications
Main Functions	Recover DNA fragments >100bp from agarose gel(<0.3g), purification of DNA from PCR, enzymatic reaction solution or crude gDNA
Applications	PCR, NGS, chip analysis, etc.
Purification technology	Magnetic beads technology
Process method	Manual or automatic
Sample type	Agarose Gel, PCR products, enzymatic reaction solution
Sample amount	Agarose Gel: <0.3g, PCR products: ≤50µl
Recovery	80%
Elution volume	≥30μl
Time per run	≤30 minutes

Principle

The Kit method contains magnetic particles in an optimized binding buffer to selectively bind DNA fragments (>100bp) and larger to paramagnetic beads. Excess primers, nucleotides, salts, and enzymes can be removed using a simple washing procedure.

Advantages

High recovery efficiency - up to 80% DNA recovery
General - recover DNA from gel or enzyme-driven reaction solutions such as PCR

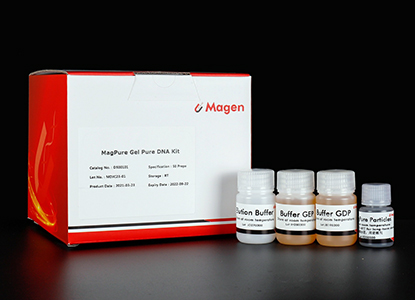

Kit Contents

Contents	D500101	D500102	D500103
Purification Times	50 Preps	500 Preps	5000 Preps
Buffer GDP	30 ml	250 ml	3 x 900 ml
MagPure Particles	1.6 ml	15 ml	3 x 50 ml
Buffer DW1	20 ml	180 ml	2 x 800 ml
Elution Buffer(10mmTris, pH8.5)	10 ml	60 ml	500 ml

Storage and Stability

MagPure Particles should be stored at 2-8°C upon arrival. However, short-term storage (up to 24 weeks) at room temperature (15-25°C) does not affect their performance. The remaining kit components can be stored at room temperature (15-25°C) and are stable for at least 18 months under these conditions.

Experiment Data

Purchase Guide

For guidance on selecting the most appropriate DNA extraction system based on sample type, input volume and workflow requirements:

👉 Magen Kits Selection Guide

Articles

Download

D5001 MagPure Gel Pure DNA Kit.pdf Preview Down

CAT NO	PRODUCT NAME	SIZE	PRICE
D500101	MagPure Gel Pure DNA Kit	50 preps	$75.00
D500102	MagPure Gel Pure DNA Kit	500 preps	$348.00
D500103	MagPure Gel Pure DNA Kit	5000 preps	$3,232.00
