MagPure Plasmid Mini Kit

MagPure Plasmid Mini Kit serves as the core standard magnetic bead product within the Magen plasmid DNA extraction portfolio. Designed for 96-well and automation-oriented processing, it isolates up to 20 µg plasmid DNA from 1.3–1.7 mL bacterial culture per well. Alkaline lysis followed by alcohol-mediated binding to paramagnetic particles supports routine preparation from both high- and low-copy plasmids, as well as fosmid and BAC constructs under the recommended handling conditions. An optional PW1 wash can be incorporated when tighter control of trace RNA and nuclease activity is required.

Within the standard magnetic branch, MagPure Fast Plasmid Mini LQ Kit (P1812) adapts the workflow for liquid-handling workstations, while MagPure Fast Plasmid Mini KF Kit (P1813) provides a prefilled 96-channel route without mid-run reagent addition. Laboratories requiring low-endotoxin plasmid DNA for cell transfection should move to MagPure Plasmid EF Mini Kit (P1814). For routine manual column preparation, HiPure Plasmid Mini Kit (P1001) remains the standard column reference product.

Engineering Characteristics

Alcohol-mediated magnetic binding

Isopropanol-conditioned paramagnetic particles capture plasmid DNA directly from clarified alkaline lysates. Magnetic separation replaces column loading and vacuum filtration, while sequential bead washing removes residual contaminants before elution.

High-throughput plate automation

The workflow is designed around 1.3–1.7 mL bacterial cultures in 2.2 mL deep-well plates. Resuspension, lysis, binding, washing and elution can be performed using plate shakers, magnetic separation and liquid-handling workstations, supporting routine high-throughput plasmid preparation.

Broad vector compatibility and optional cleanup

The system supports high- and low-copy plasmids as well as larger BAC and fosmid constructs. An optional PW1 wash helps reduce trace RNA and nuclease activity when processing endA+ strains, wild-type strains or cultures with a high carbohydrate background. Gentle mixing, controlled drying and extended elution can be used to protect larger DNA constructs.

Technical Validation

The automated magnetic-bead performance of the MagPure Plasmid Mini Kit (P1811) was evaluated using clarified bacterial lysate in a plate-based workflow. The study examined the effects of magnetic bead volume, wash configuration and PW1 wash time on plasmid DNA yield and purity. Samples were processed using 500 µL of clarified lysate and a 60 µL elution volume, with a column-based mini-prep workflow used as the reference.

Under the optimized binding and PW1 wash conditions, P1811 produced 23–26 µg of nucleic acid per extraction, compared with 21–22 µg using the column reference. The purified samples showed A260/A280 values of 1.93–1.95 and A260/A230 values of 2.29–2.38. These results support the routine yield specification of up to 20 µg per well while demonstrating additional recovery capacity under the evaluated culture and lysate conditions.

Increasing the magnetic bead volume without the PW1 wash produced higher OD-derived concentrations; however, agarose gel electrophoresis indicated that much of this apparent increase resulted from RNA co-recovery rather than additional plasmid DNA. Incorporating the PW1 wash reduced RNA-related concentration overestimation and produced OD measurements that more closely reflected the recovered plasmid DNA.

The PW1 wash step was further evaluated using contact times of 1, 4 and 8 minutes. Across these conditions, yields remained between 22.79 and 25.66 µg, with mean yields of 23.87–24.93 µg. A260/A280 values remained at 1.93–1.94 and A260/A230 values at 2.28–2.32, indicating that the automated workflow tolerates moderate variation in wash timing without a substantial effect on recovery.

P1811 was also tested using 16 different bacterial culture samples grown in 1 mL of 2×YT medium. With the optimized PW1 wash workflow, recovered DNA concentrations ranged from 100.4 to 190.8 ng/µL, with A260/A280 values of 1.886–1.973 and A260/A230 values of 2.229–2.790. Overall, the results support P1811 as an automated, plate-based plasmid mini-prep workflow for parallel processing of common plasmid cultures.

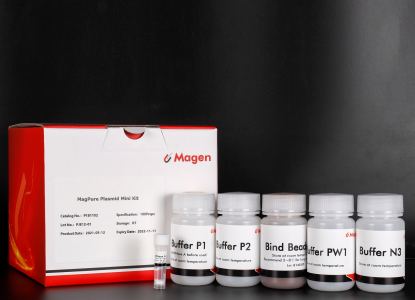

Kit Contents

Storage and Stability

RNase A and MagPure Particle NB should be stored at 2-8°C upon arrival. However, short-term storage (up to 24 weeks) at room temperature (15-25°C) does not affect its performance. The remaining kit components can be stored dry at room temperature (15-25°C) and are stable for at least 18 months under these conditions. After addition of RNase A, Buffer P1 is stable for 6 months when stored at 2-8°C.

Experiment Data

For guidance on selecting between standard and low-endotoxin plasmid workflows based on copy number, culture input and processing format, please refer to the Plasmid DNA Kits Purchase Guide.
